pursuit OF INFINITY

Soon's KST SERIES

LINEAR ACTUATOR

2018

KST-A02 LINEAR ACTUATOR

Anodized Treatment

Anti-rust,

High quality of aluminum with excellent metal finishing

100% Aluminum Stroke

With 1.6mm thickness,

19 mm diameter

Aluminum Alloy Die-castings

High strength, anti-corrosion

Spur Geared Motors

Made by SHA YANG YE, Taiwan

low noise, low current

Built-in Limited Switch

Precisely control each travel length of  each KST series electric actuators

Light & Inline Design

Elegant looking,

Well protection of products,

Minimized the installation dimension

LIGHT but POWERFUL

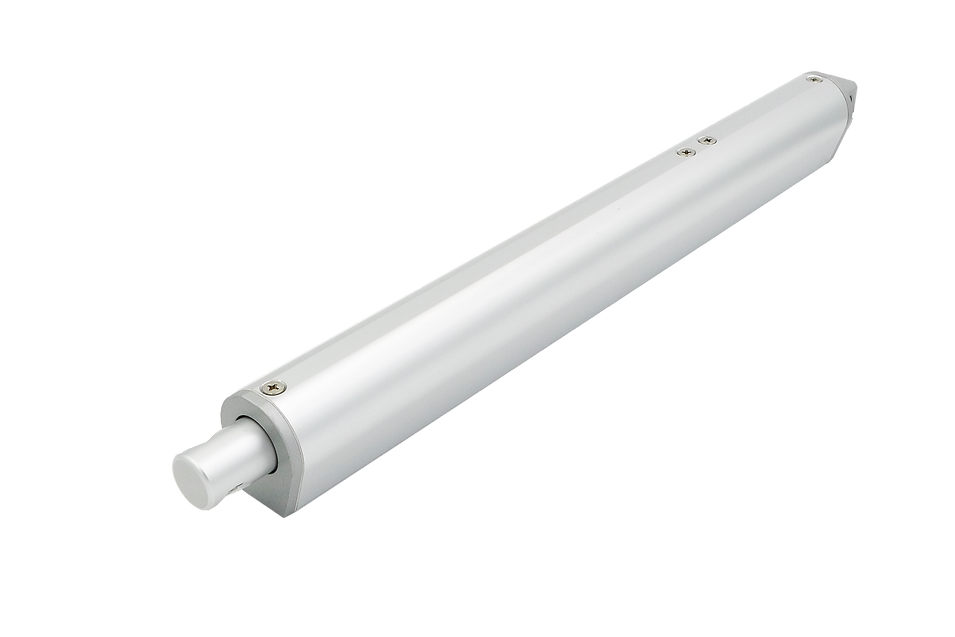

KST-A02 linear actuator

The new linear actuator KST-A02 minimized the size of inline design actuators by 30%. But we maintain the strength of electric actuator, with maximum dynamic force of 600N, equal to 60 kgf.

Waterdrop styling with excellent metal finishing. Make KST-A02 perfectly match for high class interior design or equipment.

Cost down shipping cost for 30%.

Volume downsize to 53%.

Net weight cutdown to 70%.



SPUR GEARED MOTORS

motor of KST-A02 linear actuator
motor of KST-A02 linear actuator
motor of KST-A02 linear actuator

The world top Micro Geared Motors Manufacturer: SHA YANG YE



LIMITED SWITCH

limited switch of KST-A02 linear actuator

Each electric actuator is built-in 2 limited switch to control the movement of travel length of stroke.

With limited switch, we can control the movement more precisely in real-time.

ANODIZED TREATMENT

KST-A series is made by high quality aluminum alloy with delicate anodized treatment.



Anti-rust & abrasion resistant. After few years of explosion under natural environment, KST-A linear actuator is still look great.



Color of actuators is customizable to fit your interior design

KST-A02 linear actuator anti-rust


Endurance test for 100,000 times

limited switch of KST-A02 linear actuator

According to SGS test result. After extend and retract stroke for 100, 000 times, KST-A02 Linear Actuator is still working well and no substantial damage.

Dustproof & Waterproof

Under IEC 60529 Edition 2.2: 2013--IP6X and IPX6 test method. After exposed under 8 hours of talcum powder and 3 mins of water jet, there is no visual dust and water drops into the housing.
