Attic Ventilation On The Roof Of Large Factory With Electric Window Openers

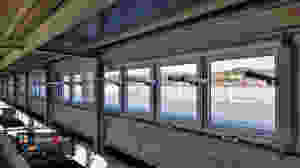

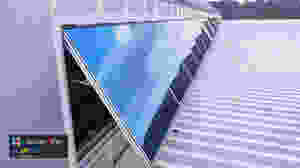

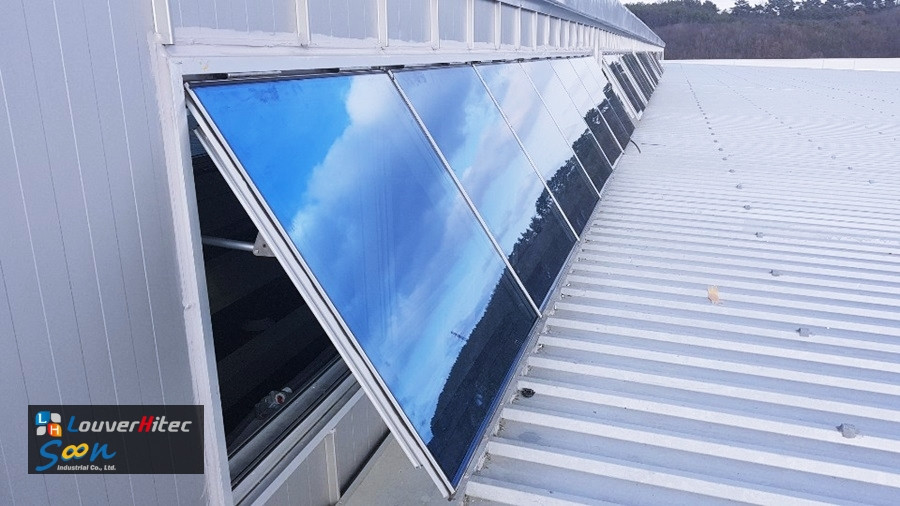

The factory was designed ATTIC especial for ventilation. Opening a row of top hung windows on both side. With electrical window opening systems, the factory manager could control the opening range according to the weather. Made temperature of interior space comfortable for workers.

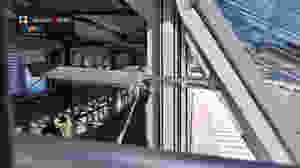

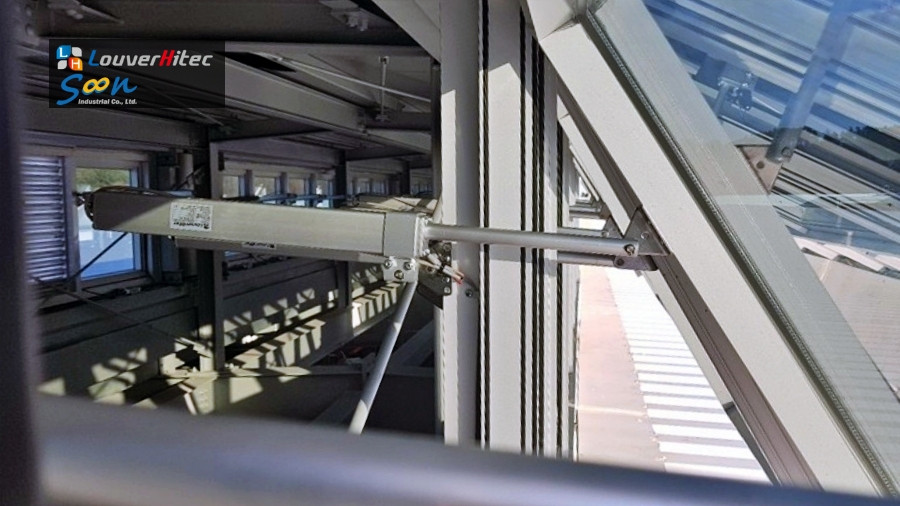

After calculation, the KST-A01 linear actuators are installed on one-third of window frame. Push the windows straight out for about 45 degrees. The maximum force of each KST-A01 linear actuator will be 800N. Therefore, the system must be check annually especially the connecting brackets.

These windows are divided into 3 sections by central control system.

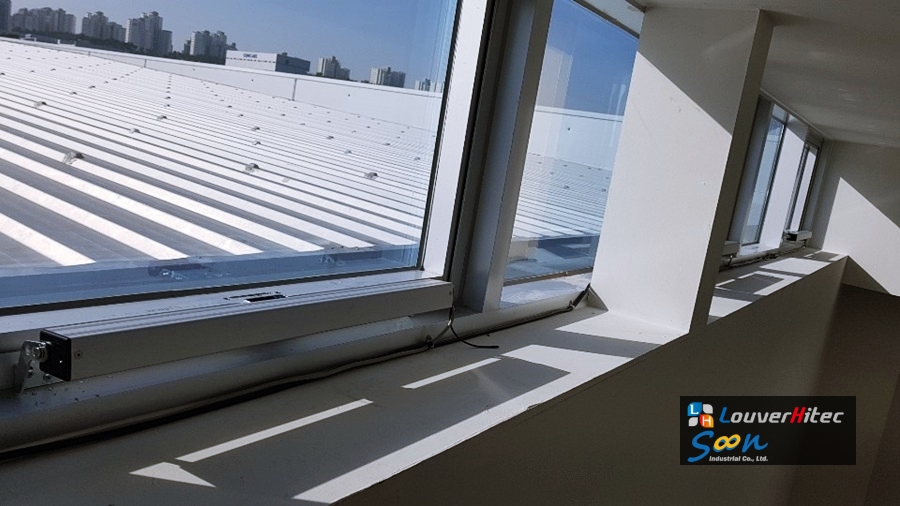

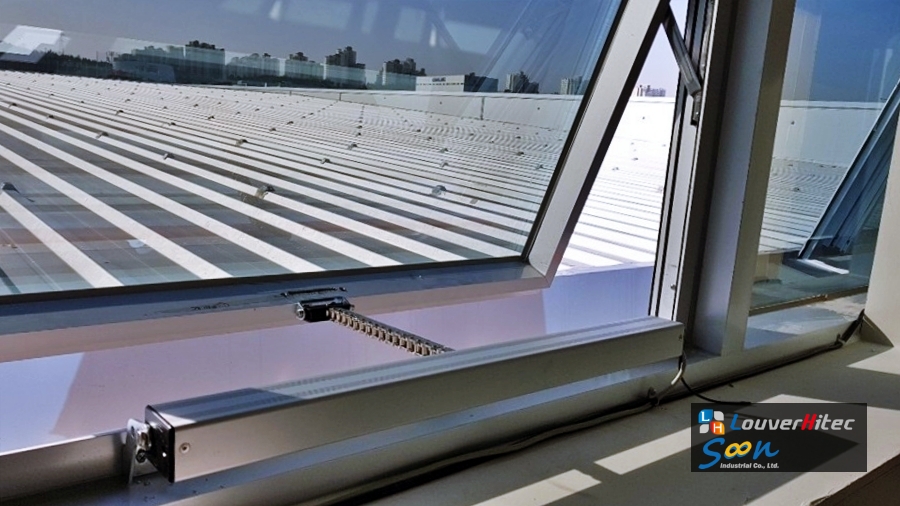

Some of windows were installed KST-C01 chain actuators. Although the unit cost was higher than linear actuators. But it was easier for installation.

Basic information about the case of Attic Ventilation in factory

Located: South Korea

Year of installation: 2019

Application of linear actuator: natural ventilation with electric awning windows

Type of window actuator: KST-A01 linear actuator, KST-C01 chain actuator

Type of window: Top hung windows, Outward opening windows

©Soon Industrial Co., ltd. All right reserved

#linearactuator #electricwindowopener #naturalventilation #chainactuator
