Install automatic sliding window openers for the transoms of high ceiling store

Updated: Aug 25, 2022

A new opening Woodcraft workshop was with a high ceiling design. The interior designer designed sliding windows on the top. The lower place is the display area. The sliding windows were about 1.5 meters in height. Bring in a lot of natural light into the interior space. Meanwhile, these windows could provide much fresh air into the store.

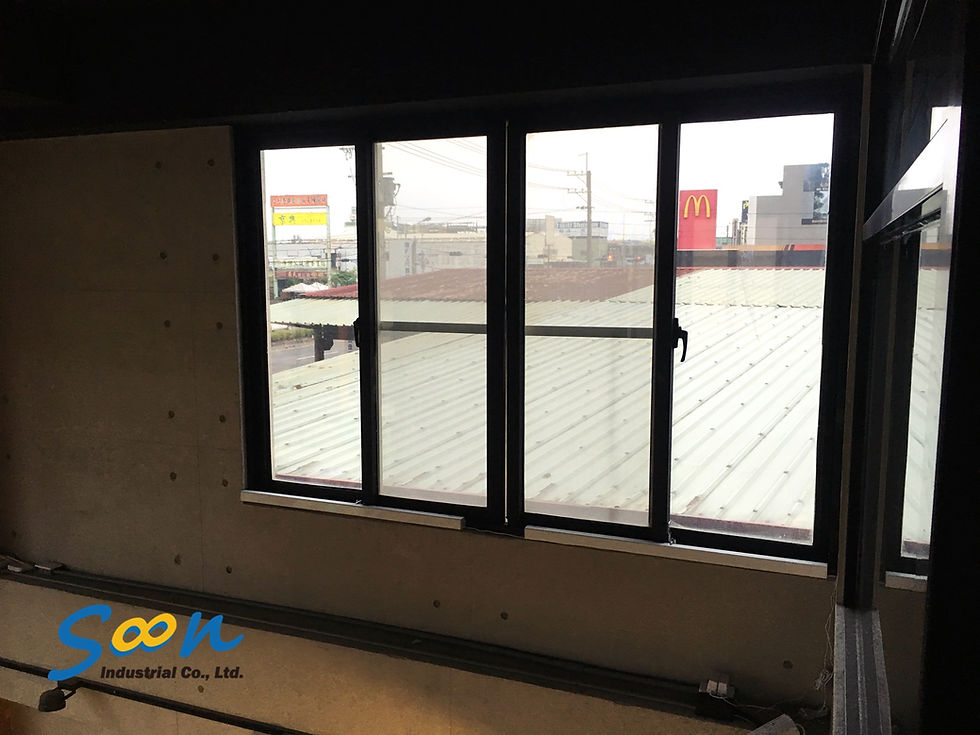

high ceiling store_automatic sliding windows_1
high ceiling store_automatic sliding windows_1



The owner installed bi-parting sliding windows on both sides. The total length was about 2.5 meters. And the entire ventilation dimension is about 3.75 square meters, equal to a queen-size bed. The sliding windows are 2 meters in height. People have to climb the ladder to open the windows. There is no place to put the ladders in the lower area. The owner decided to install automatic sliding window openers as a solution.



high ceiling store_automatic sliding windows_2
high ceiling store_automatic sliding windows_2

KST-SL01 sliding window opener hides all the mechanisms inside the case. We applied the square shape aluminum case powder coating with snowy white. The opener was very compatible with the industrial and loft styl


e.

high ceiling store_automatic sliding windows_3
high ceiling store_automatic sliding windows_3

The product could be customized in the right or left opening direction with a built-in RF 433 remote receiver, which could be operated by a remote controller or wall switch. You use only one controller for operating all windows. There is no rush from climbing the ladder to closing windows when it's raining.



high ceiling store_automatic sliding windows_4
high ceiling store_automatic sliding windows_4





The specially designed window frame bracket could quickly turn the windows from automatic to manual mode. When in automatic mode, you need to push the pin into the U shape bracket of the window opener to connect the window and machine. Turning the buckle to the twelve o'clock position when the power goes out releases the window and machine.

KST-SL01 automatic window opener for sliding windows
KST-SL01 automatic window opener for sliding windows


Besides the automatic opener function, it also builds the second anti-theft function. When locked with the U shape brackets, it is hard to open windows from outside the house.

KST-SL01 automatic window opener for sliding windows_diy set
KST-SL01 automatic window opener for sliding windows_diy set


KST-SL01 automatic window opener DIY kit is straightforward to install with an AC power supply. Well made in Taiwan, passed over 15,000 times durability tests and warranty for 1 year.


Check the product working video in the woodcraft workshop.



Basic information about the case of woodcraft workshop, Taiwan

  • Located: Kaohsiung, Taiwan

  • Year of installation: 2018

  • Application of linear actuator: natural ventilation with sliding windows

  • Type of linear actuator: KST-SL01 sliding window opener. Total length is 120 cm

  • Quantity of actuator: 4 pcs

  • Done by Soon Industrial
