KST-A01 Inline Design Linear Actuator, 800N, 24 VDC

SKU KST-A01-DC24
$48.00
Hot Sale/In Stock
Linear Actuator, 800N, DC24V, 48 - 400 mm
Stroke Length
Please choose
W/ mounting brackets
Please choose
Actuator Controller
Please choose
Special Holder
Please choose
Estimated delivery time
Shipping: 9–13 days
In stock: 10 available
1
Save this product for later
Share this product with your friends
KST-A01 Inline Design Linear Actuator, 800N, 24 VDC
Product Details
Brand: Soon Industrial
Motor Voltage: 24 VDC
RF Remote: Need additional actuator controller
Maximum Force: 800N
Protection: Limited Switches on both ends
Wiring: 2 wire cables (M+, M-)

Features

  • With TRACK inside, the inner rod will NOT be ROTATED while it extending outward or retracting inward.
  • Made with precision machined spur geared motors with METAL GEARS from TAIWAN.
  • LOW WORKING CURRENT, min. is about 0.45A ( no-load ).
  • Tolerance is less than 1mm, perfect for controlling a row of KST-A linear actuators IN A SERIES.
  • The products were Protected by LIMIT SWITCH on both ends. When the actuators are fully extended or retracted, the motor's power supply will be cut automatically.
  • Maximum pressure force is 800 N/ 80 kgf/ 180 lbf.
  • The bottom and top were sealed by Aluminum Alloy Die-castings. High strength, anti-corrosion. It was largely extending the lifespan of products.
  • Anti-rust. Cover by HIGH QUALITY of aluminum alloy with excellent anodized treatment.
  • IP54 rated good weather resistance for SEMI-OUTDOOR use. Protect against dust and splashing water.
  • Low noise with 55 dB.
  • SGS certified. Passed 100,000 cycles Endurance Test, Push Up Test, Compression Test, IP66 protection test, and Salt Spray Test. Test Reports.


Working Video

Soon Industrial On YouTube

Working Video of KST-A01 Inline Linear Actuator

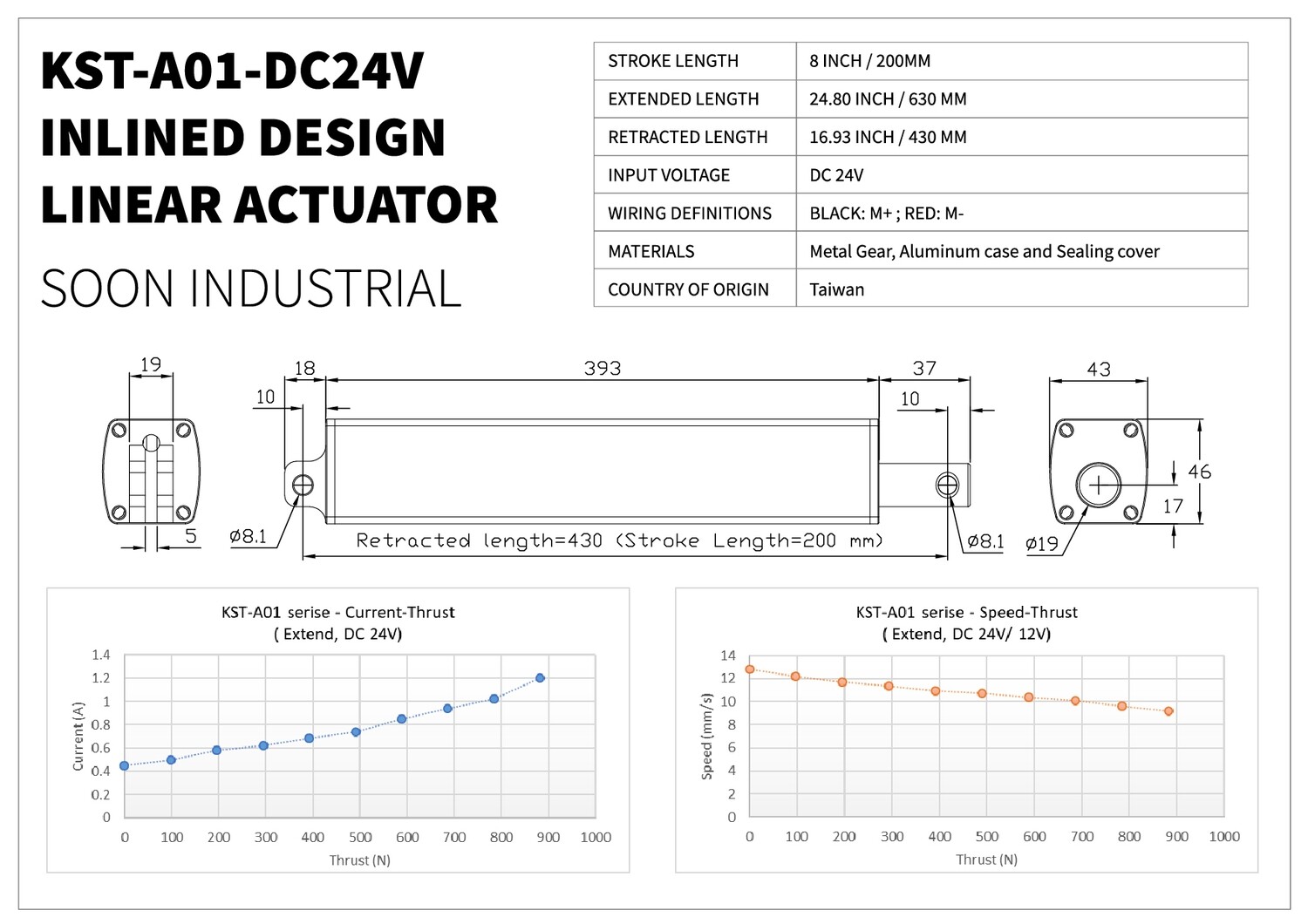

Specs

  • Stroke length(Traveling length): 48mm/ 150mm/ 200mm/ 250mm/ 300mm/ 400 mm
  • Voltage: 24VDC (For 12VDC products, please contact us directly)
  • Materials: Anodised aluminum, stainless steel
  • Maximum dynamic load: 800 N/ 80 kgs/ 180 lbs
  • Minimum installation dimension: stroke + 230 mm/ stroke + 9 inches
  • Voltage/ Working Current: 24 VDC / 0.45A~1.2A
  • Travel speed: 12mm/sec ( no load )
  • Duty cycle: 20%
  • Gear Type: Spur geared motor
  • IP rating: IP54
  • Noise level: 55dB ( no load )

Customized Specs

  • Color of housing: With anodized treatment. MOQ 50 pcs.
  • Stroke Length: From 48 to 800 mm. MOQ 50 pcs.
  • Rod Material: Upgrade to SUS 304. MOQ 10 pcs.
  • Speed::Up to 18 mm/s. ( no load ) MOQ 10 pcs.
  • Drive Motor: 12 VDC motor. MOQ 10 pcs.

*If there is any customized inquire, please contact us directly for your needs.


Choose Right Specs And Accessories For Your Applications

  1. OPTION 1 Stroke length of the inner tube: 48mm/ 150mm/ 200mm/ 250mm/ 300mm/ 400mm
  2. OPTION 2 Brackets, please refer to brackets list page on our website:
    1. KST-BKT-0102: 1 pair, including front and rear bracket. For installing actuators on hung windows.
    2. KST-BKT-0405: 1 pair, including front and rear bracket. For installing actuators on jalousie windows.
    3. KST-BKT-06: 2 pcs. For UP & DOWN applications.
    4. KST-BKT-07: 2 pcs. For FORWARD & BACKWARD applications.
    5. KST-BKT-08: 2 pcs. Reinforcement steel sheets.
  3. OPTION 3 Actuator Controller, please refer to Actuator controllers list page on our website:
    1. KST-B861-R-72W: 72W, 24VDC output, 100V to 230VAC input, remote control. Max support for 1 to 2 pcs of KST-A01 Actuators.
    2. If you need to control many electric actuators at one time, please purchase KST-B1 Actuator Controllers separately.
  4. OPTION 4 Special Holder, KST-A01-H, Special Holder for KST-A01 linear actuator, optional
    • The special holders are for adjusting the direction of force slightly.

Before Placing Order

  • There're more details and cases of application on our website. Please check https://www.soonkst.com for more information.
  • Please confirm the available quantity, lead time, shipping method and application before placing orders.
  • We are welcoming any questions about our products or linear actuator applications. Customers could consult with us for more compatible SPECs.
  • Our email: soonkst@soonkst.com . We will get back to you within 24 hours.

!Returns And Complaints !

  • Any complaints referring to either the quantity or the quality of the delivered products must be made within 8 (eight) days after receiving the products.
  • Returns made as a result of Soon Industrial Co., Ltd. error will be accepted at our discretion. Soon Industrial Co., Ltd. will provide 1 TO 1 COMPLAINT for customers or make a deduction on the next order.
  • Returns are made as a result of customers, including ordered wrong specifications, quantity, style, etc. After noticing and accept by Soon Industrial Co., Ltd, the customer shall deliver back the products within 8 (eight) days after receiving the package. The returning should be well re-packaged with all assemblies, unused, no defects. Soon Industrial Co., Ltd. will make a refund after receiving and inspecting the returned products. There will be a 30% restock charge on customers.

!Warranty !

  1. The Warranty is limited to the repair or replacement of product parts that Soon Industrial Co., Ltd. acknowledges as defective through equivalent re-manufactured Products.
  2. The Warranty for KST Series Electric Actuators and Actuator Controllers are 12 (twelve) months from the day of dispatch.
  3. The Warranty does not cover the following situations:
    1. Defects caused by fair wear and tear;
    2. Inadequate or abnormal use;
    3. Damage caused by carriers;
    4. Installed our products on defeats windows or electrical system;
    5. The carelessness of workman or customer;
    6. Incorrect use or installation;
    7. The use of non-original spare parts, actuators, and controllers.
  4. The customer shall do the product/ system maintenance at least every SIX months.
  5. Implementation terms: If customer find out any defect which is not cause under the situation from Clause 3. & 4. Customers shall exercise their rights within 14 days after finding out the defect. And providing evidence of defect by videos, photos, or other methods and showing the copy of the purchase document/ invoice to Soon Industrial Co., Ltd. through email (soonkst@soonkst.com) or letter (1F., No.239, Sec. 1, Defang Rd., Dali Dist., Taichung City 412, Taiwan ). After accepted and confirmed by Soon Industrial Co., Ltd., we will send new complaints to customers.
  6. The Warranty does not include indirect damage, loss of profits, loss of productions, people injury, or death resulting from negligence.
