Smart Window Opener System In Eco-energy Show Room Of College

Updated: Aug 25, 2022

National Taiwan University of Science and Technology cooperated with workers from Tokushima ken, Japan. They used the unique china fir in Tokushima as the primary material for construction. They were constructed the structure by joggle joint technic without any nails. This building is for Sustainable Smart Campus Data Exhibiting Center. They were monitoring all energy consumption in the campus.


This building also integrated a smart building system with lights, windows, temperature sensors, humidity sensors, smart meter, interactive projection mechanic, and smart power supply. When visitors come, this showroom will go into presentation mode automatically. Open and close windows depend on the temperature, humidity setting on the system. The windows are improving ventilation for the interior space. Make visitors feel comfortable when visiting.

chain actuators_automatic window openers_1
chain actuators_automatic window openers_1


The showroom was designed with a row of windows on the top for natural ventilation. They installed automatic window openers for controlling all windows through the smart home system. Therefore, these windows provide well natural light and ventilation for interior space.

chain actuators_automatic window openers_2
chain actuators_automatic window openers_2


We choose KST-C-R series chain type linear actuators as automatic window openers. This product was with built-in remote control, especially for opening awning windows. When it opens, the hot air on the ceiling could exhaust outside and let the cool air come from lower windows—cooldown the environment without relying on the air-conditioner.

chain actuators_automatic window openers_3
chain actuators_automatic window openers_3

KST-C Chain Window Actuators are very easy to install. With our special mounting brackets for the window sash and frame, people could easily install the actuator on the window. These electric window openers are common in luxury houses in Europe and Australia for opening skylights.



chain actuators_automatic window openers_4
chain actuators_automatic window openers_4

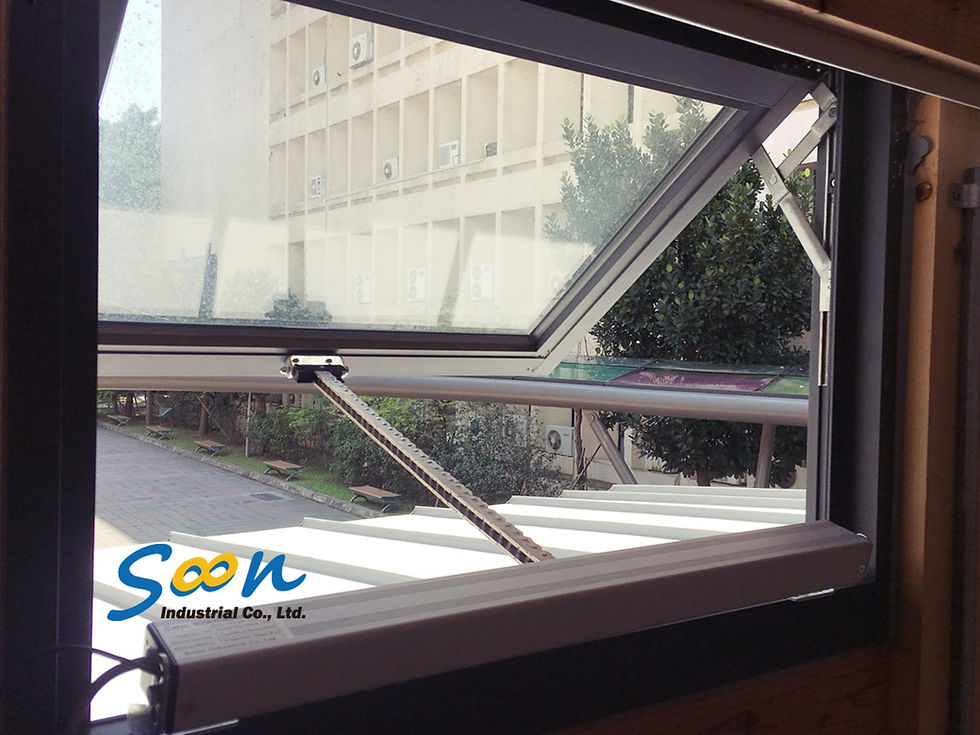

The length of the chain is 300mm, for opening the window to about 45 degrees. We also provide customized measurements of chain actuators for different sizes of windows or opening angles. The material of the chain is made of nickel-plated steel for pulling or pushing 40 kgf.



chain actuators_automatic window openers_5
chain actuators_automatic window openers_5


The main difference between linear actuators and chain-type actuators as automatic window openers are installation and noise. Chain-type automatic window openers are easier for building but also quieter. Especially suitable for quiet showrooms or campuses.

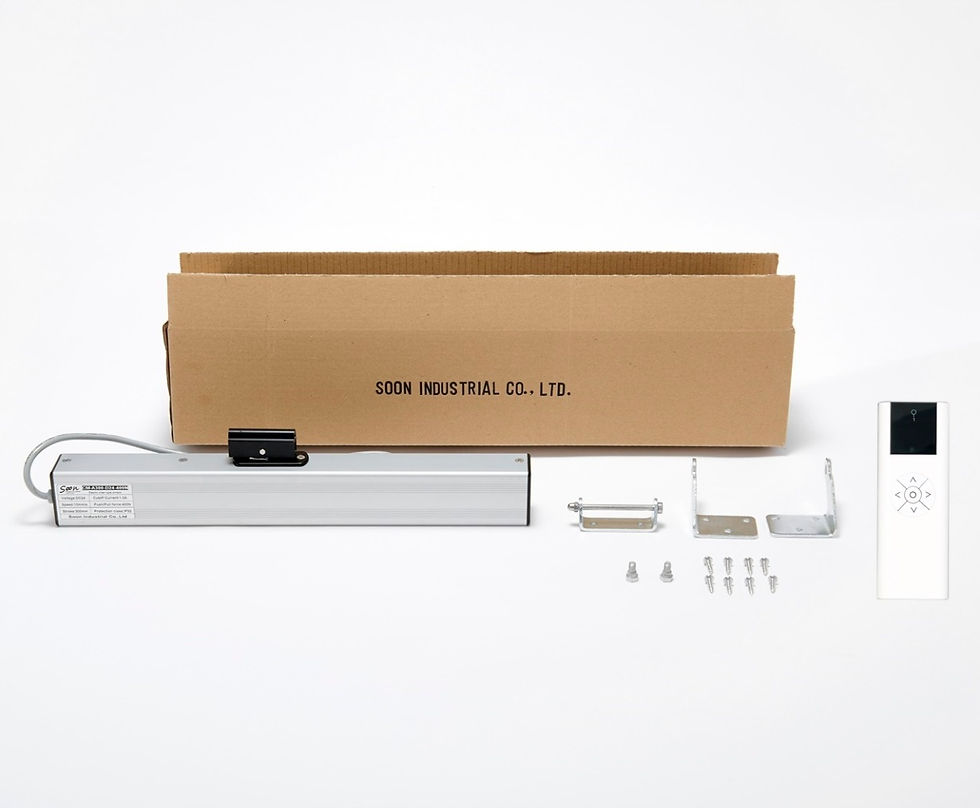

KST-C series chain-type automatic window openers are with DIY packages, including special mounting brackets and screws. You only need to prepare the electric drill by yourself.

KST-C01 chain actuator
KST-C01 chain actuator

More about KST-C series chain type automatic window openers

  • Video of KST-C01 series automatic window opener installation step by step, https://youtu.be/Kuh3zZDnRWc

  • Working video of KST-C02 series dual chain automatic window opener, for width over 90 cm windows, https://youtu.be/5EZVu6MJFmc

  • Other cases with chain type automatic window openers, https://www.soonkst.com/blog/in-prosperous-gangnam-area-bring-the-automatic-window-open-mechanism-come-true



Basic information about the showroom of eco-energy in campus

  • Located: Taipei, Taiwan

  • Year of installation: 2018

  • Application of linear actuator: natural ventilation with awning windows

  • Type of linear actuator: KST-C0112 chain type electric window opener with stroke length 300mm

  • Done by Soon Industrial, Korea
