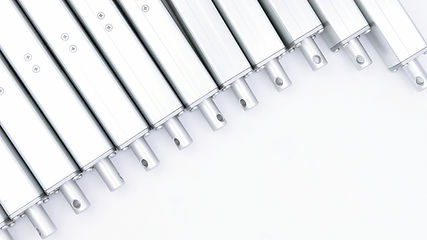

KST-S02 Heavy Duty Spindle Actuator, 1200N, IP65

In stock
Product Details


  • IP65 rated, good weather resistance for outdoor use. Protect from dust and water spray from all directions.
  • Rod is made by solid STAINLESS STEEL.
  • INLINE DESIGN, compact size and elegant design.
  • Housing made by aluminum alloy which the surface is treated by anticathode oxidation. Greatly improves the rigidity and anti-corrosion.
  • The motor is with built-in OVER CURRENT PROTECTION.
  • Maximum pressure force is 1200N ( 122 kgf/ 270 lbf).
  • Standard brackets and fastenings included.


  • Stroke length(optional): 300mm/ 400mm/ 500mm
  • Input Voltage(optional): 24 VDC
  • Materials: Anodised aluminum, stainless steel
  • Maximum dynamic load:1,200 N/ 122 kgs/ 270 lbs
  • Travel speed: 6 mm/sec ( no load )
  • IP rating: IP65
  • Rod: SUS 304 / Rod: Ø24.5 /
  • Mounting Hole: Ø5
  • Noise level: 38dB ( no load )

Customized Specs

  • Color of housing: With anodized treatment. MOQ 20 pcs.
  • Stroke Length: From 50 to 1000 mm. MOQ 5 pcs.

*If there is any customized inquire, please contact us directly for your needs.

Choose Right Specs And Accessories For Your Applications

  • OPTION 1 - Stroke length of inner tube: 300mm/ 400mm/ 500mm
  • OPTION 2 - Input Voltage: 24 VDC
  • OPTION 3 - Actuator Controller, please refer to Actuator controllers list page on our website:
    1. KST-B14: 4A, 24VDC output, 110VAC/ 220VAC input, dry contact sensor supported. Max support for 1 to 4 pcs of KST-E02 Actuators.
    2. KST-B18: 8A, 24VDC output, 110VAC/ 220VAC input, dry contact sensor supported. Max support for 1 to 8 pcs of KST-E02 Actuators.
    3. KST-B14-R: 4A, 24VDC output, 110VAC/ 220VAC input, dry contact sensor supported, remote control. Max support for 1 to 4 pcs of KST-E02 Actuators.
    4. KST-B18-R: 8A, 24VDC output, 110VAC/ 220VAC input, dry contact sensor supported, remote control. Max support for 1 to 8 pcs of KST-E02 Actuators.
    5. KST-B861-R-72W: 72W, 24VDC output, 100V to 230VAC input, remote control. Max support for 1 to 2 pcs of KST-E02 Actuators.
  • OPTION 4 - Wall Switch, there should be additional wall switch if you select KST-B14, KST-18, KST-B14-R, or KST-B18-R Actuator Controller.
    1. KST-WS-J120/C: diaphragm switch. With Transparent Case.
    2. KST-WS-A120/C: White surface, easier wiring. With Transparent Case.
    3. KST-VZ-213S/C: Wi-Fi Smart Switch, support for APP "VIZO SMART" control. With Transparent Case.

! Before Placing Order !

  • There're more details and cases of application on our website. Please check for more information.
  • Please confirm with us about available quantity, lead time, shipping method and application before placing order.
  • We are welcoming any question about our products or linear actuator applications. Customers could consult with us for more compatible SPECs.
  • Our email: . We will get back to you within 24 hours.

!Returns And Complaints !

  • Any complaints referring to either the quantity or the quality of the delivered products must be made in within 8 (eight) days after receiving the products.
  • Returns which is made as a result of Soon Industrial Co., Ltd. error, will be accepted at our discretion. Soon Industrial Co., Ltd. will provide 1 TO 1 COMPLAINT for customers or make a deduction on next order.
  • Returns which is made as a result of customers, including ordered wrong specifications, quantity, style, etc. After noticing and accept by Soon Industrial Co., Ltd., customer shall delivery back the products within 8 (eight) days after receiving the package. The returning should be well re-package with all assemblies, unused, no defects. Soon Industrial Co., Ltd. will make refund after receiving and inspecting the returned products. There will be 30% restock charge on customers.

!Warranty !

  1. The Warranty is limited to the repair or replacement of product parts that Soon Industrial Co., Ltd. acknowledges as defective, through equivalent re-manufactured Products.
  2. The Warranty for KST Series Electric Actuators and Actuator Controllers are 12 (twelve) months from the day of dispatch.
  3. The Warranty does not cover following situations:
    1. Defects caused by fair wear and tear;
    2. Inadequate or abnormal use;
    3. Damage caused by carriers;
    4. Installed our products on defeats windows or electrical system;
    5. Carelessness of workman or customer;
    6. Incorrect use or installation;
    7. The use of non-original spare part, actuators, and controller.
  4. Customer shall doing the product/ system maintenance at least every SIX months.
  5. Implementation terms: If customer find out any defect which is not cause under the situation from Clause 3. & 4. Customers shall exercise their right within 14 days after finding out the defect. And providing evidence of defect by videos, photos, or other methods and showing the copy of the purchase document/ invoice to Soon Industrial Co., Ltd. through email ( or letter (1F., No.239, Sec. 1, Defang Rd., Dali Dist., Taichung City 412, Taiwan ). After accept and confirm by Soon Industrial Co., Ltd., we will send new complaints to customers.
  6. The Warranty is not including for indirect damage, loss of profits, loss of productions, people injury or death resulting from negligence.
Save this product for later



3 - 10 days






  • Please CONSULT with us before placing orders.

  • WARRANTY for 1 year on Electric Actuators, Actuator Controllers, Smart Home Device, and Wall Switches. Warranty

  • LEAD TIME: Standard products about 3 to 10 days. Delivery and Shipping

  • SERVICE AREA: We provide shipping service to most countries in the world. If your country is not in the drop-down list, please contact us.

  • Payment: We accept payment through PayPal.
