How to install KST-SL01 Automatic Sliding Window Opener By Yourself

Updated: Jun 17, 2022


It's straightforward to install KST-SL01 automatic sliding window openers. With our DIY set, it just needs to take about 30 minutes for installation. Let's start!

KST-SL01_Automatic Window Openers For Sliding Windows_1
KST-SL01_Automatic Window Openers For Sliding Windows_1


KST-SL01 Automatic Window Opener For Sliding Windows, The DIY Set Will Include The Following Items


  1. KST-SL01 track linear actuator: 1 pc

  2. Remote controller: 1 pc

  3. Adapter: 1 pc

  4. Standard bracket package: 1 set


Installation Steps By Steps

Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_2
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_2

(A) Window frame connecting bracket: 1 pc


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_3
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_3

(B) L-shape fixing brackets: 2 pcs


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_4
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_4

(C) 18mm screw: 4 pcs, for fixing (B) on the window frame


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_2
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_5

(D) Twin adhesive: 2 pcs, for fixing KST-SL01 automatic window opener for sliding windows on window frame temporally


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_6
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_6

(D) Twin adhesive: 2 pcs, for fixing KST-SL01 track linear actuator on window frame temporally


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_7
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_7

(F) 29mm screw: 2 pcs, for fixing (E) on the wall


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_8
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_8

(G) 10mm screw: 8 pcs, for fixing (A) on the window sash


Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_9
Brackets_KST-SL01_Automatic Window Openers For Sliding Windows_9

(F) Anchor for 29mm screw: 2 pcs, for fixing (E) on the wall



Step 1: Fix (A) Window Frame Connecting Bracket On The Window Sash

Step 1_KST-SL01 Automatic Window Openers For Sliding Windows_1
Step 1_KST-SL01 Automatic Window Openers For Sliding Windows_1
  • Prepare item: (A) connecting bracket and (G) 4 pcs of 10mm screws.

  • The window must be closed during the whole installation process.

  • Find a suitable location to install (A) on the bottom window sash.

Step 1_KST-SL01 Automatic Window Openers For Sliding Windows_2
Step 1_KST-SL01 Automatic Window Openers For Sliding Windows_2

Step 1_KST-SL01 Automatic Window Openers For Sliding Windows_3
Step 1_KST-SL01 Automatic Window Openers For Sliding Windows_3
  • Mark the position of (A) and use the power drill to screw (G) on the window sash.

Step 2: Trying Hook KST-SL01 Automatic Window Opener For Sliding Windows With (B) L Shape Brackets

Step 2_KST-SL01 Automatic Window Openers For Sliding Windows
Step 2_KST-SL01 Automatic Window Openers For Sliding Windows

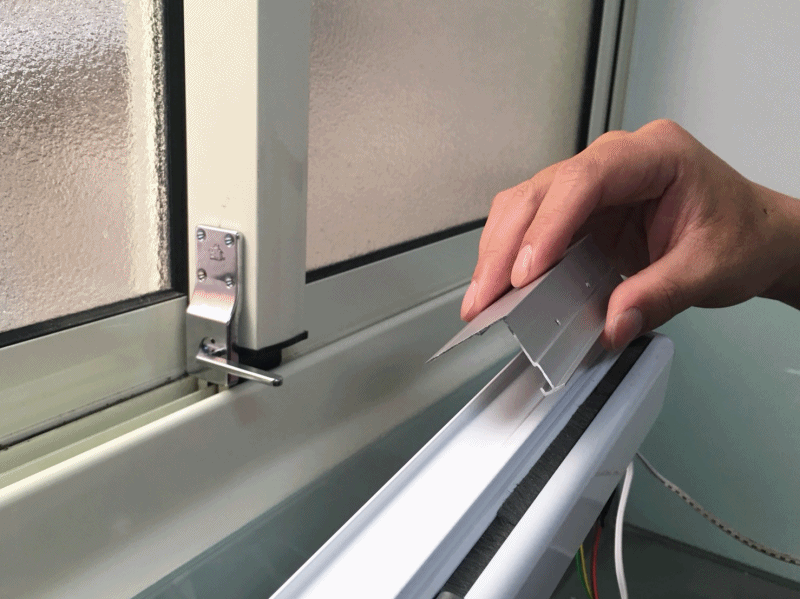

  • Use (B) L shape bracket to hook the top of the KST-SL01 track linear actuator.

  • And click the bottom of the (B) L shape bracket on the body of the KST-SL01 track linear actuator.

  • Suppose you learn how to hook track linear actuator with (B) L shape bracket—then going to next step for officially installation.


Step 3: Fixing KST-SL01 On The Window Frame

Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_1
Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_1

Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_3
Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_2
  • Use (D) twin adhesive to temporarily stick (B) an L-shaped bracket on the window frame.

  • Turn the stick of (B) on the U shape bracket to ensure the best position of all components.

  • Get the best position of (B) L shape bracket.

  • Then separate (B) L shape bracket and KST-SL01 Automatic Window Opener For Sliding Windows.

Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_3
Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_3

Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_4
Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_4
  • Use (C) 18mm screws to fix (B) L-shaped brackets on the window frame. ( Note: you could find self-tapping screws instead of (C) 18mm screws for the aluminum window frame. )

  • Hook KST-SL01 automatic window opener for sliding windows on both (B) L shape brackets. You might need to push a little bit harder. There will be a "click" sound when the frames and actuator are fixed perfectly.


Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_5
Step 3_KST-SL01 Automatic Window Openers For Sliding Windows_5
  • Turn the stick of (A) connecting bracket on the U shape bracket, a built-in track linear actuator.

  • Connect the adapter with a track linear actuator and AC power supply.

  • Try to operate your window with remote control.

  • It's finished! How easy it is.
